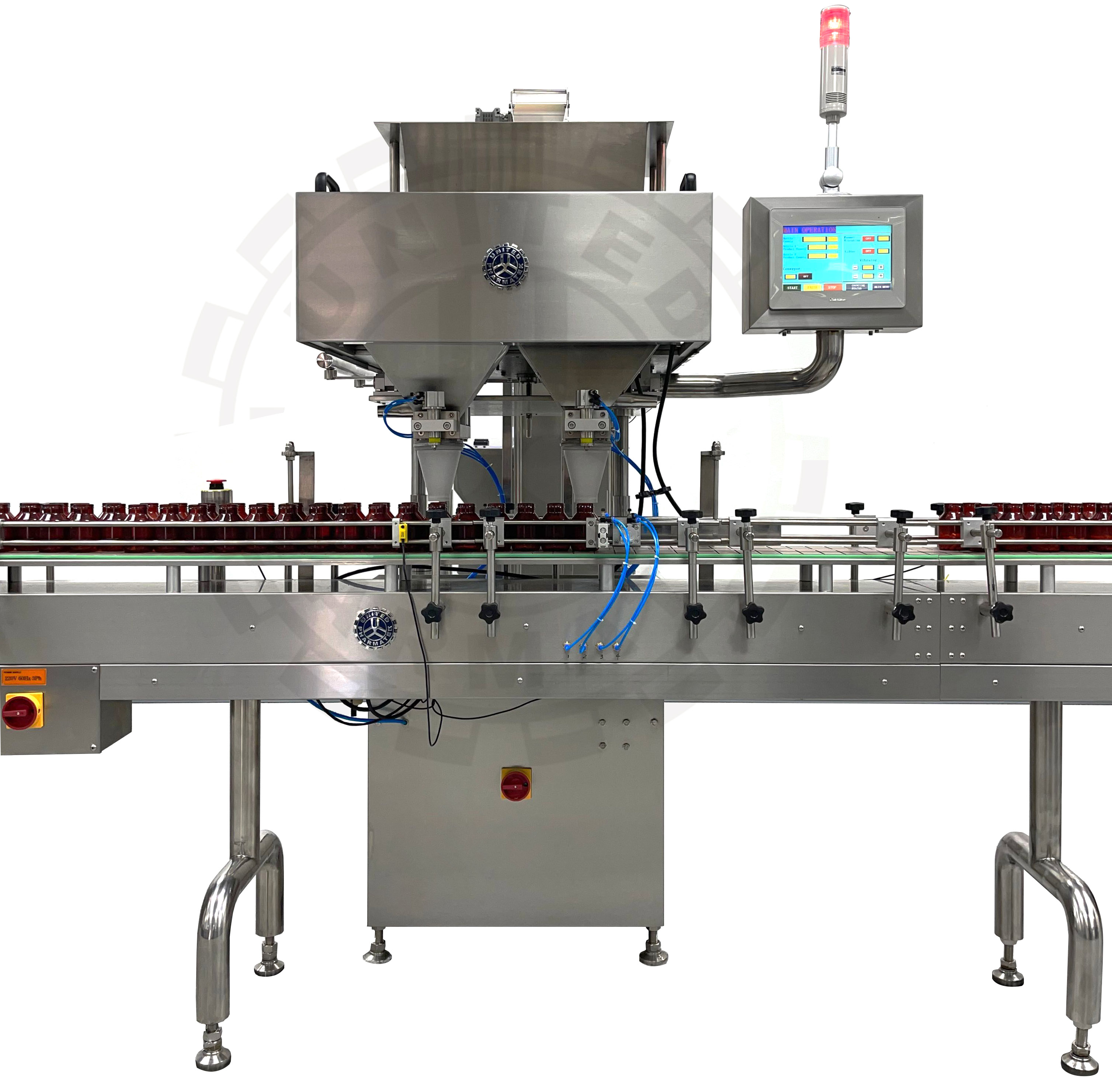

UAC-16 Tablet Capsule Counting/Bottling Packing Machine

Tablet Counter & Filler

12 /16 / 24 Channel Automatic Tablet Counter

Our Tablet / Capsule Counter & Filler machines "E" Series (Economic) are used to automatically count and fill hard gelatin capsules, softgels, tablets, round pills etc. UAC-12 has 12 channels with dual nozzles and equipped Intelligent Sensor Eyes, with a total of 176 sensor eyes for 100% counting accuracy. The tablet counter machine has three-stage vibration trays to infeed tablets or capsules; vibrating frequency is adjustable in each tray for quick and stable feeding. Bottles are positioned and indexed through air cylinders to ensure accurate positioning prior to filling thus avoiding spillage. It features diving nozzles that lock bottles into place prior to filling. UAC-12 Tablet Counter Machine has an output of 40 bottles/min, UAC-24 Tablet Counter Machine has an output of 80 bottles/min, we can integrate (02) UAC-24 tablet counter Machines for counting up to 120-140 bottles per minute at 60-100 counts.


  • New compact design, includes cleaner machine operation and easier clean-up
  • Panasonic HMI Touch Screen Control Technology & Color Touch Screen Panel for reliable operations.
  • Suitable for counting any sizes and shapes of tablets and capsules w/o changing parts.
  • Sensor Control Double Rail Conveyor for Double Counting & Filling.
  • The products dropped by two-stage vibration and dedusting system without damage to the tablets or capsules, which conforms to the cGMP standards.
  • 12 or 24 counting channels, each equipped with product sensors to count each product.
  • The vibratory channel trays are seperated from the vibratory drive system to provide inner protection, longer machine life and 100% counting accuracy.
  • Equipped with advanced detecting system which includes a dust compensator and built-in spike controller. Sensor sensitivity automatically self-adjusts to offset the gradual accumulation of “dust” on the sensor window.
  • “Quick Disassembly” design for faster clean up. Can be dismantled in only a few minutes without the use of tools, making production changeover easy and time-saving.
  • Excellent after sales service support

Panasonic Touch Screen Control
Each automatic pill counter is designed to eliminate potential human error and drastically decrease overall operation times

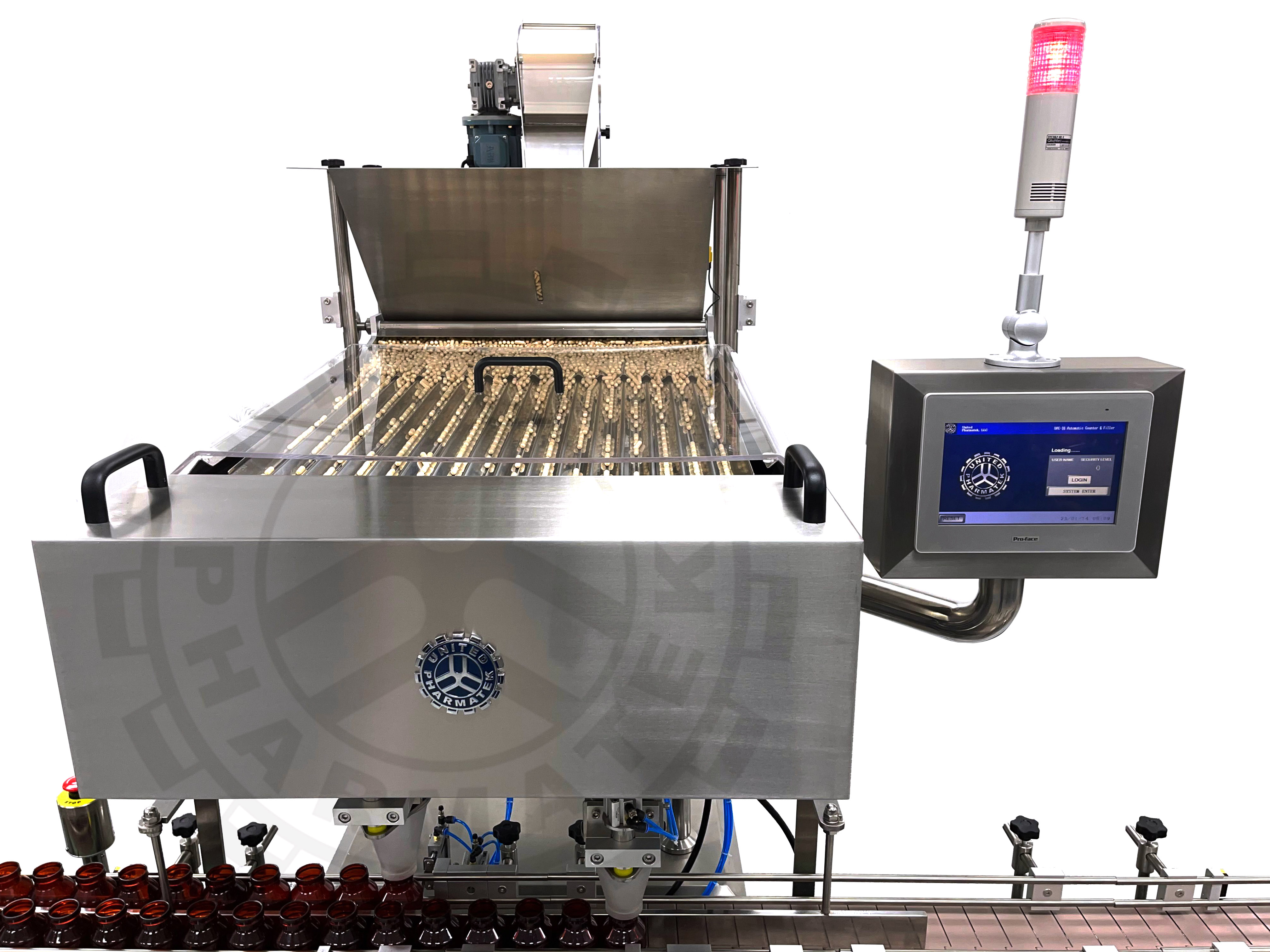

UAC Counter Panasonic Color Touch Screen Interface

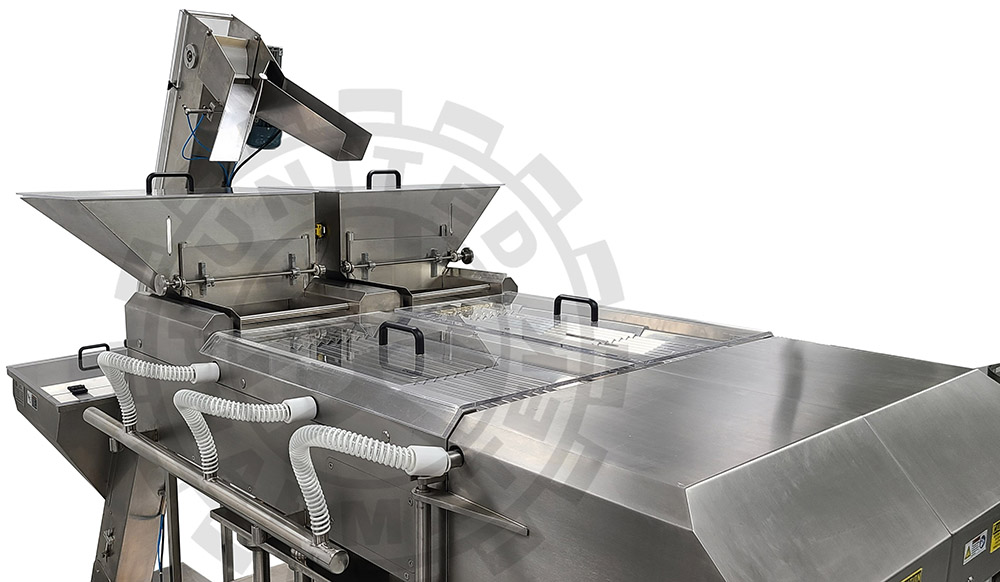

UAC Counter Vibrating/Diving Funnels
24-Channel Counter with Optional Loader
Continuous feeding with Optional tablet or capsule Loader
24-Channels or 12 Channels
The tablet counter machine has three-stage vibration trays to feed tablets or capsules.

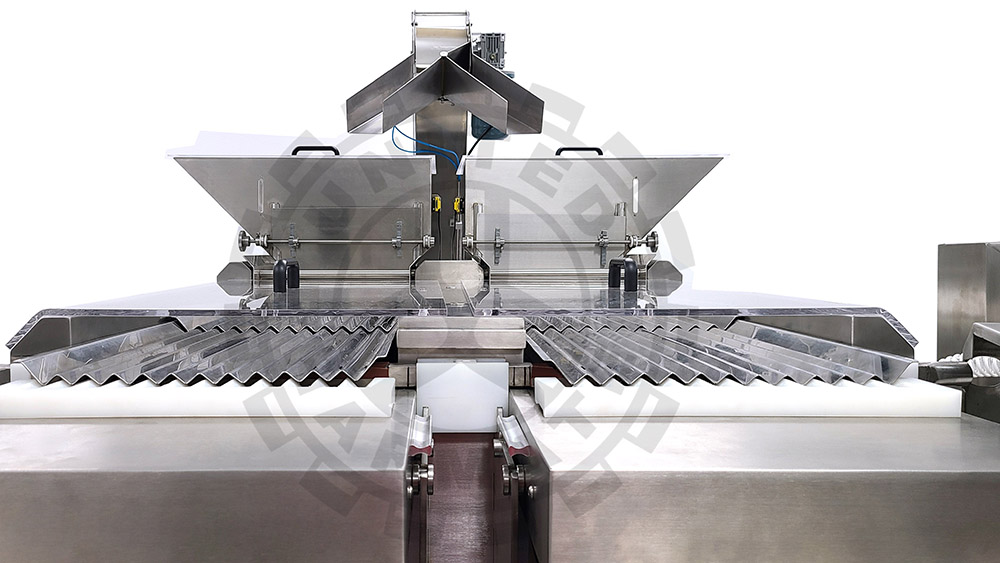

Automatic Counter and Filler

UAC-12E / UAC-16E / UAC-24E Automatic Packing Machines

Tablet Counter Machine

# Model UAC-12E UAC-16E UAC-24E
1 Production Output 30-40 bottles/min
(rated on #0 capsule - 60 count)
60-65 bottles/min
(rated on #0 capsule - 60 count)
70 bottles/min
(rated on #0 capsule - 60-100 count)
2 Product Size Range Tablet Diameter 5 ~ 22mm;
Capsule #00 ~ 5
Tablet Diameter 5 ~ 22mm;
Capsule #00 ~ 5
Tablet Diameter 5 ~ 22mm;
Capsule #00 ~ 5
3 Single Bottle Counts 15~10000 pcs./min. 15~10000 pcs./min. 15~10000 pcs./min.
4 Max Speed: 16,000 pcs/min. 16,000 pcs/min. 16,000 pcs/min.
5 Power Supply 220V, 60Hz, 3-PH 220V, 60Hz, 3-PH 220V, 60Hz, 3-PH
6 Weight Approx. 1000 Kg Approx. 1100 Kg Approx. 2000 Kg
