Emulsification Mixer

Emulsification Mixer

Vacuum Emulsifying System

Model URJ Vacuum Emulsification Mixers are specially designed for processing cosmetics and ointments. They are composed of a pretreatment Jacketed Oil or/and Water Tanks, vacuum emulsifying mixer (Jacketed), vacuum pump, hydraulic system, tilting discharge system, and electric control system.

Structure:
With 3-layer structure, upper and lower end sockets. The upper end socket is connected to the tank body with flange between them. The internal layer of tank body is made of 5 mm thick SUS316L stainless steel and interior polished in 400 MESH (sanitary level). The middle layer of tank body is made of 4mm thick SUS304 stainless steel and can stand max. Working pressure is 0.09 MPa(coil tube). The external layer of tank body is made of 2 mm thick SUS304, and exterior polished in 300 MESH (sanitary level). All the welding seams shall be polished after rubdown, and as to the treatment interface, turned over edge arc transition is adopted. The heat preservation layer is made of PU polyurethane foaming.

Compact Design for Minimum Floor Space
Emulsifying head in the equipment is designed to perform a high vortex efficiency homogenization and allow de dispersion of the product

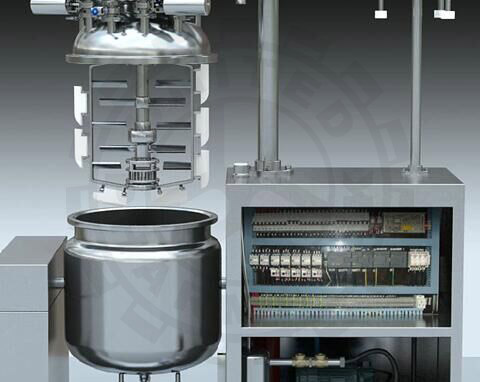

Vacuum Mixer Interior
Automatic Tube Filler
Accurate pre-treatment tank control
Pre treatment tanks can be added as optional to the configuration of the main equipment.
Pretreatment Tanks with Safty Guard
Filling And Sealing for Plastic Tubes
Automatic Tube Filler
Bottom Homogenizing Emulsifier
Filling And Sealing for Plastic Tubes
Emulsification Mixer Layout

Emulsification Mixer

Vacuum Emulsifying Mixer

# Model URJ-150 URJ-300 URJ-600 URJ-1000 URJ-2000
1 Container Volume 200L 420L 740L 1300L 2500L
2 Max Output 150L 300L 600L 1000L 2000L
3 Min Output 50L 100L 200L 300L 600L
4 Slow-Speed Mixing System
(Frequency Control)
1.5kW 2.2kW 2.2kW 4kW 7.5kW
5 High-speed Homogenizing-Mixing System
(Frequency Control)
3kW 7.5kW 7.5kW 15kW 22kW
6 Power Supply 220V, 60Hz, 3Ph 220V, 60Hz, 3Ph 220V, 60Hz, 3Ph 220V/460V, 60Hz, 3Ph (29kW) 220V/460V, 60Hz, 3Ph (39.5kW)
7 Net Weight 1700kg 2800Kg 3500Kg 4500Kg 5500kg
