Liquid Filling Machine

Liquid Filling Machine

Liquid Packaging Equipment

United Pharmatek provides a wide range of Liquid Packaging Equipment custom tailored to each customer's filling requirements. We can provide a single liquid filling machine or integrate with our packaging equipment to form a complete bottling line.

Model UAFL liquid filling machine is ideal for filling thin liquids like water. This filler is capable of accommodating up to 8 heads for standard filling and 4 heads for oversize liquid filling. It features user-friendly PLC controls and a touch screen HMI panel. Our liquid fillers are built to suit a wide variety of applications in the food & beverage, cleaning & specialty chemical, pharmaceutical, and cosmetic & personal care industries.



Liquid Packaging Equipment

  • cGMP Design / cGMP Standard
  • User–Friendly
  • Easy to adjust from one bottle size to another
  • All bottles can be adjusted according to any types of liquid filling
  • A full spectrum of usage in pharmaceutical, cosmetics, chemical, foodstuffs, etc…
  • Variable Speed Drive
  • Quick Cleaning and Simple to Maintain
  • Accurate Filling
  • Custom filling heads are available to meet different filling requirements
  • PLC Touch Screen Control System
  • The most advanced and economical automatic liquid bottle filler in the industry
8-Heads Filling Nozzles
Adjustable Filling Speed and can quadruple fill for larger fill volumes

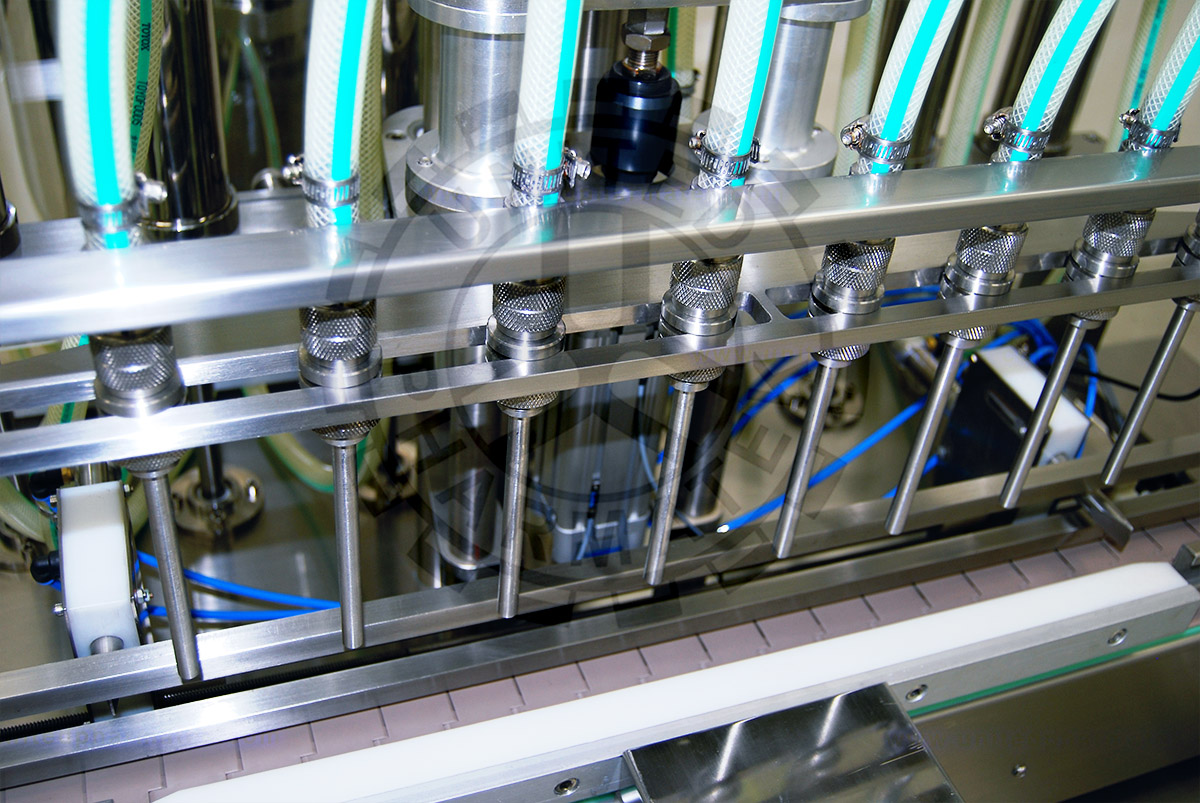

8 head liquid filling machine

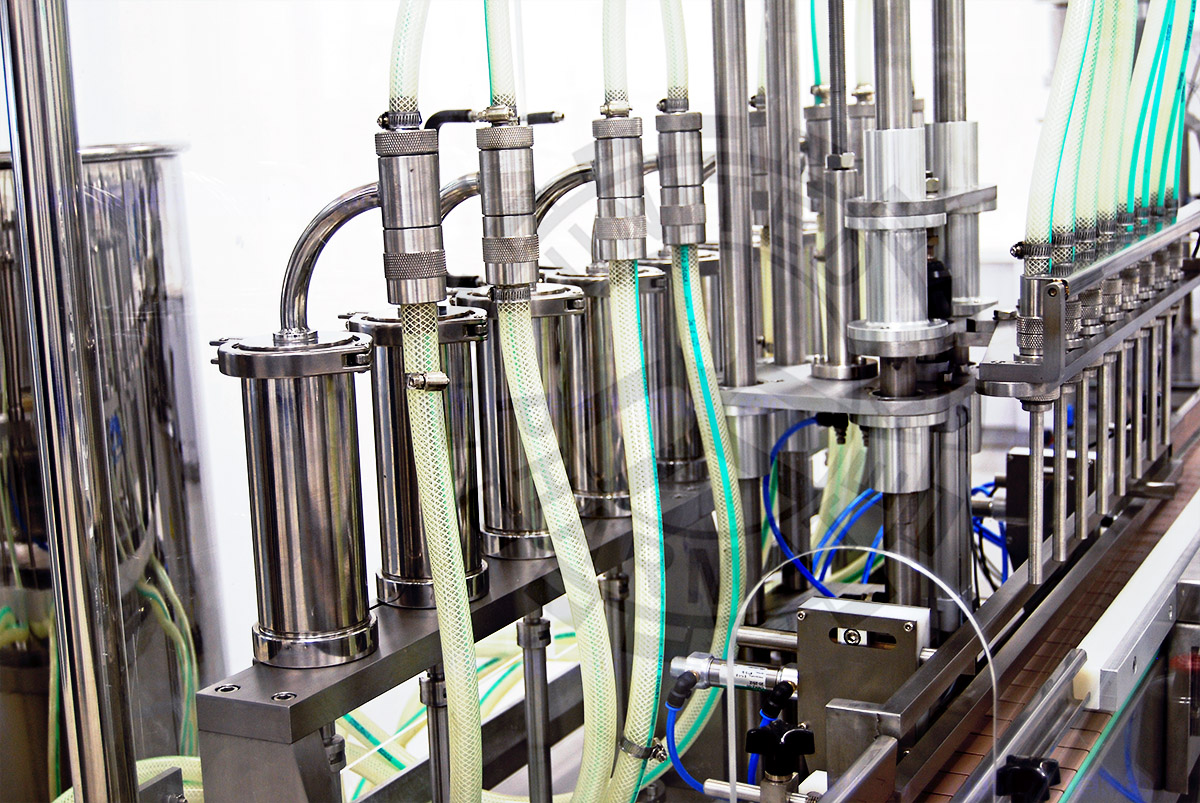

Liquid Filler Nozzles
8 Heads Filling Nozzles with Removable Pistons
Changeover of Different Piston Sizes for different fill volumes
Liquid Storage Tank Integrated with Connection Kits
Stainless Steel Liquid Storage Tank for automatic filling

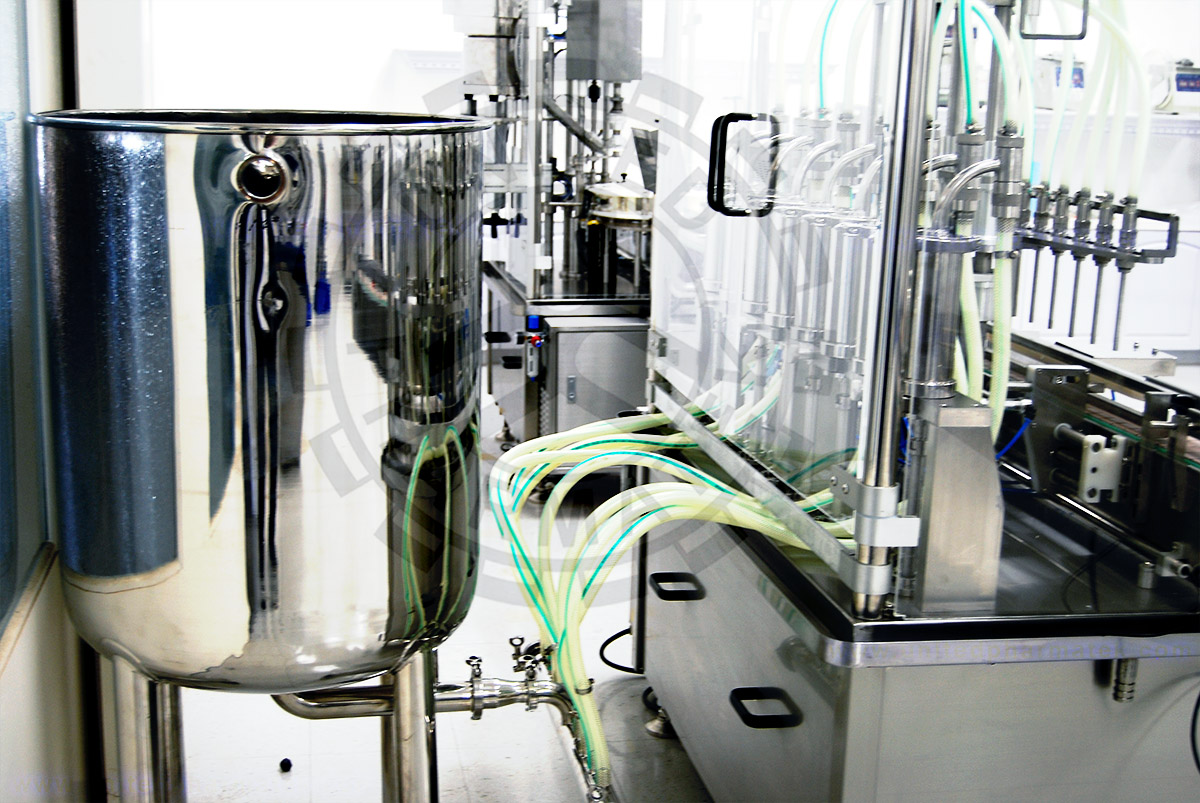

Liquid Packaging Machine with Liquid Tank

Liquid Bottle Filling Machine

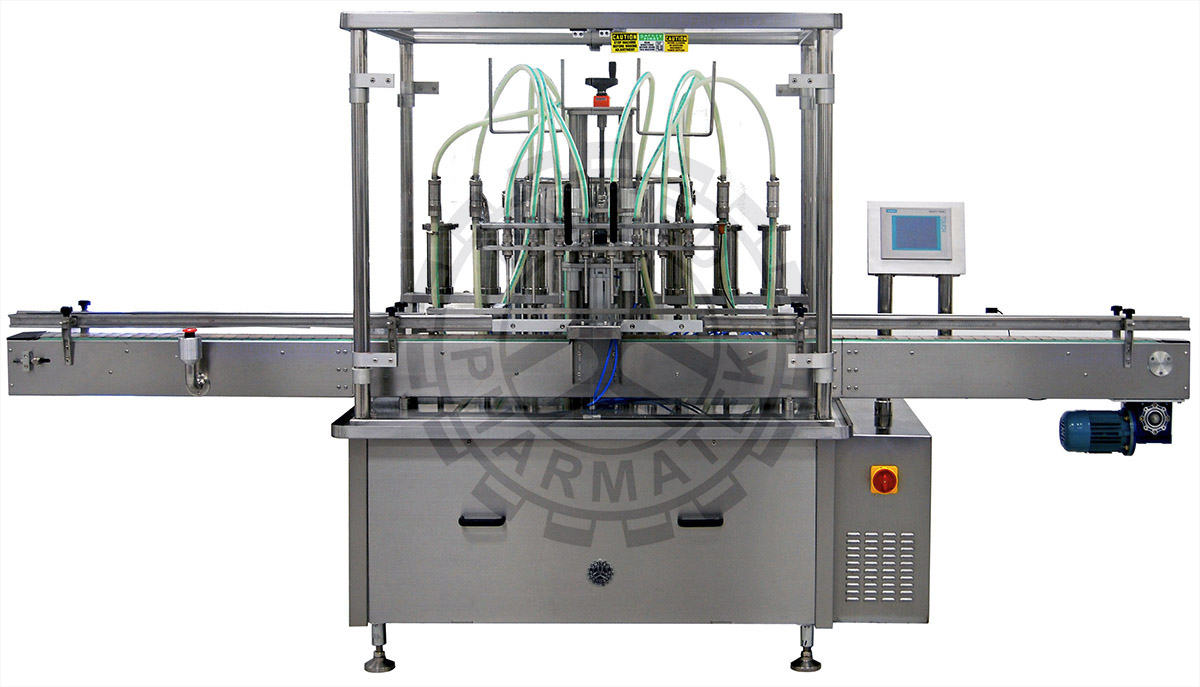

Liquid Filling Machine

# Model UALF-18 UALF-175
1 Production Output 40-55 bottles/min (8-Heads)
60-65 bottles/min (10-Heads)
Up to 16-24 bottles/min
2 Product Size Range 15ml ~ 520ml
With changeover of Piston Sizes
800ml ~ 5000ml
With changeover of Piston Sizes
3 Filling Heads 8 Sets or
10 Sets
4 Sets
4 Power Supply 220V, 60Hz, 3-PH 220V, 60Hz, 3-PH
6 Dimensions 134” x 32” x 75” 189” x 32” x 75”
