V Blender

V Blender

V-Shell Blenders

United Pharmatek's V Blenders are rugged in design and construction, made from 304 S.S. (optional 316L) mirror polished for inner and outer shell to meet the cGMP Standards. We offer the most affordable V blenders in the market for laboratory to large-scale production. Our V blenders use heavy duty industrial ABB Motors & Drives for the rotation of the V-Shell and intensifier bar. OMRON Safety Sensor Gates are available for all V Blenders as well as Variable Speed Control for the V-Shell and I-Bar.

V Blender Working Principle

V-Shell Blenders are commonly used in pharmaceutical, nutraceutical, chemical, food and related industries to mix dried powder and granules. It consists of two inclined cylinders attached together in the form of a "V". Through mechanical transmission, the powder materials in the shell are displaced back and forth, constantly being split and intermixed as the shell rotates to achieve ultimate uniformed mixing. Normal cycle times are typically in the range of 15 minutes; however, it can be less depending on the difficulty of blending. The V blender can be equipped with an intensifier bar, which helps in mixing and breaking up materials.

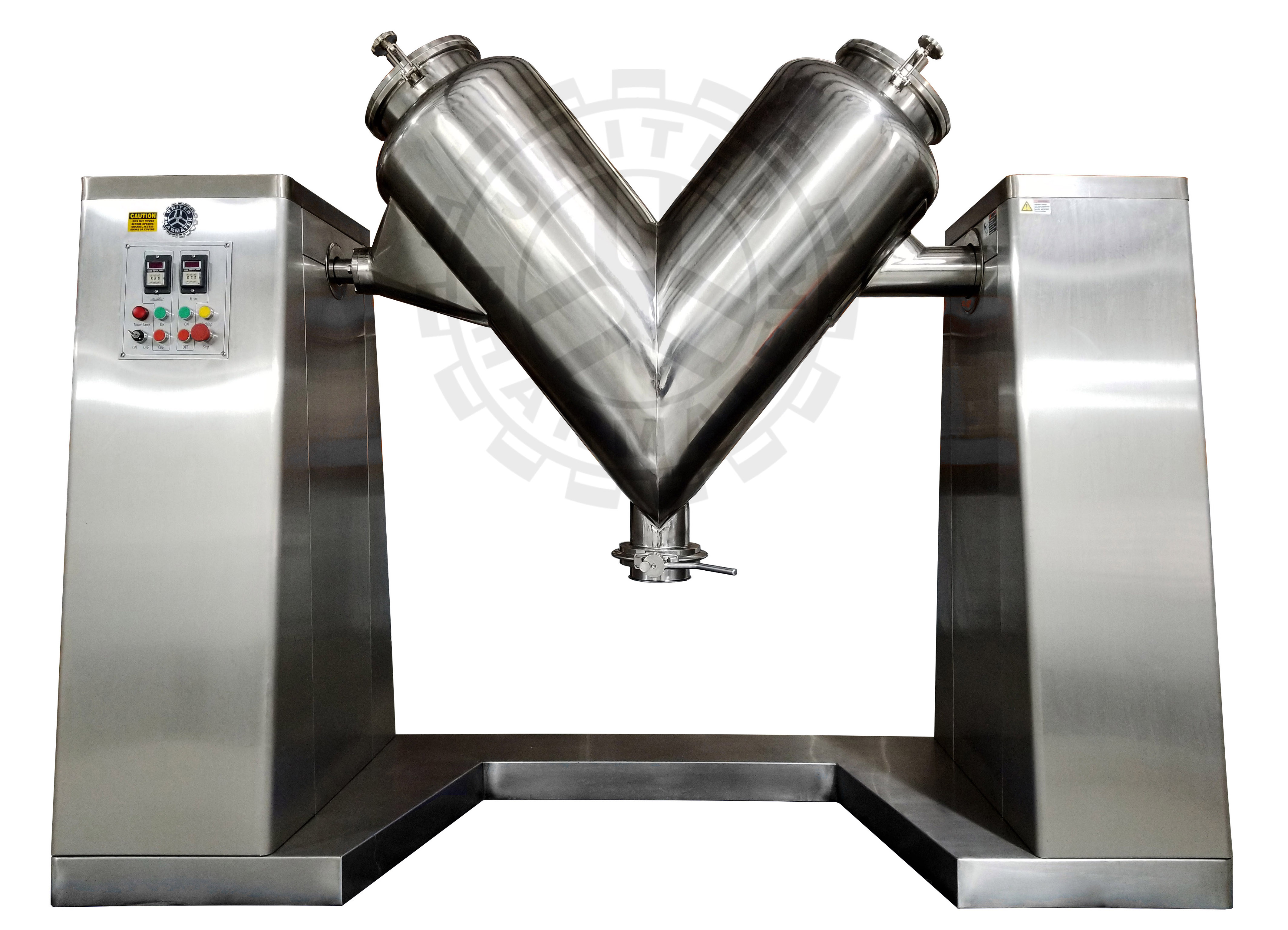

V Blender

304 S.S. (optional 316L) mirror polished of inner and outer V-shell to meet the cGMP Standard.

V Blender in 304

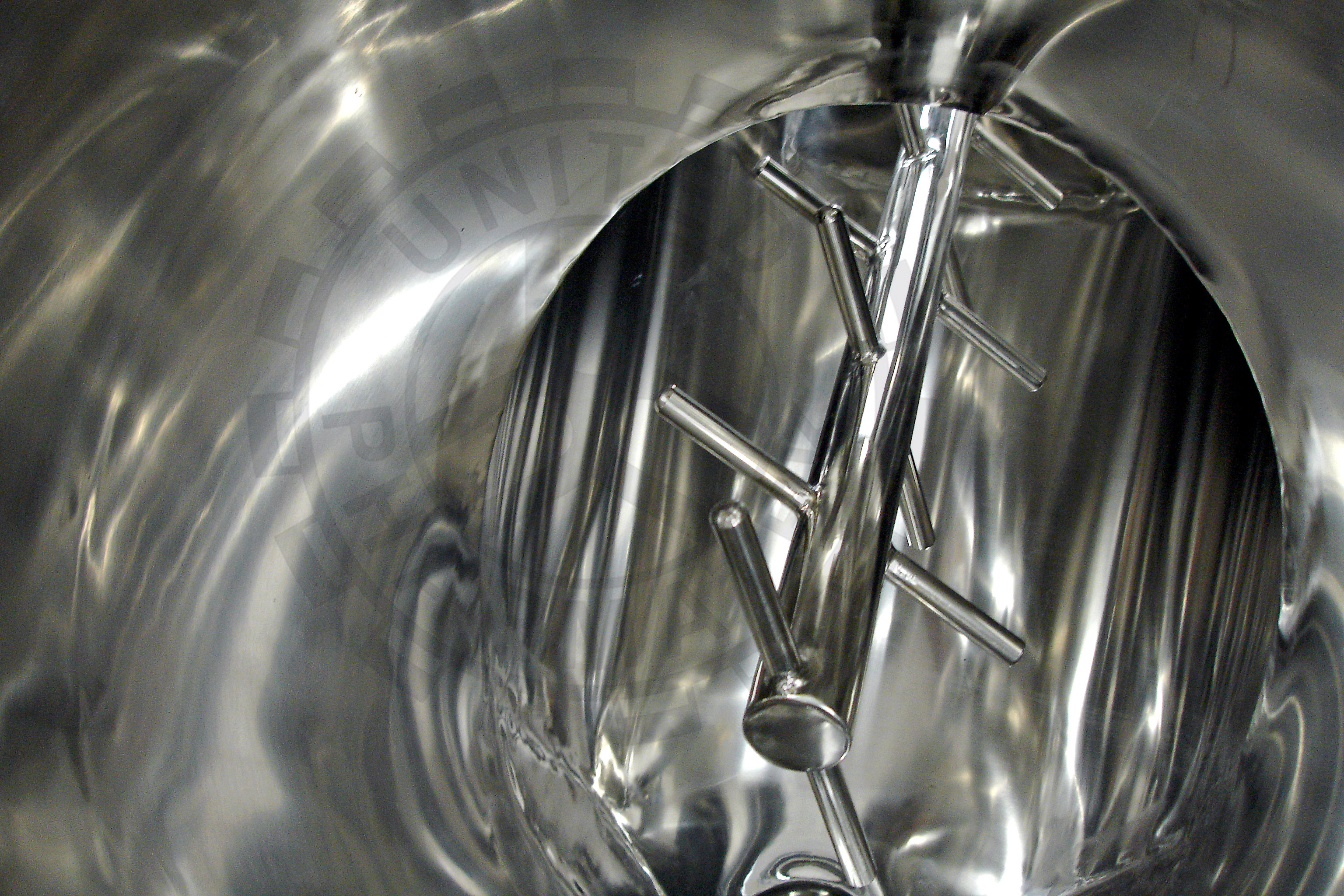

Intensifier Bar for V Blender

V Blender Intensifier Bar

Removeable Intensifier Bar increases mixing eficiency.

Stainless Steel Construction and all parts contacted with material are high quality 304 stainless steel to meet cGMP standard

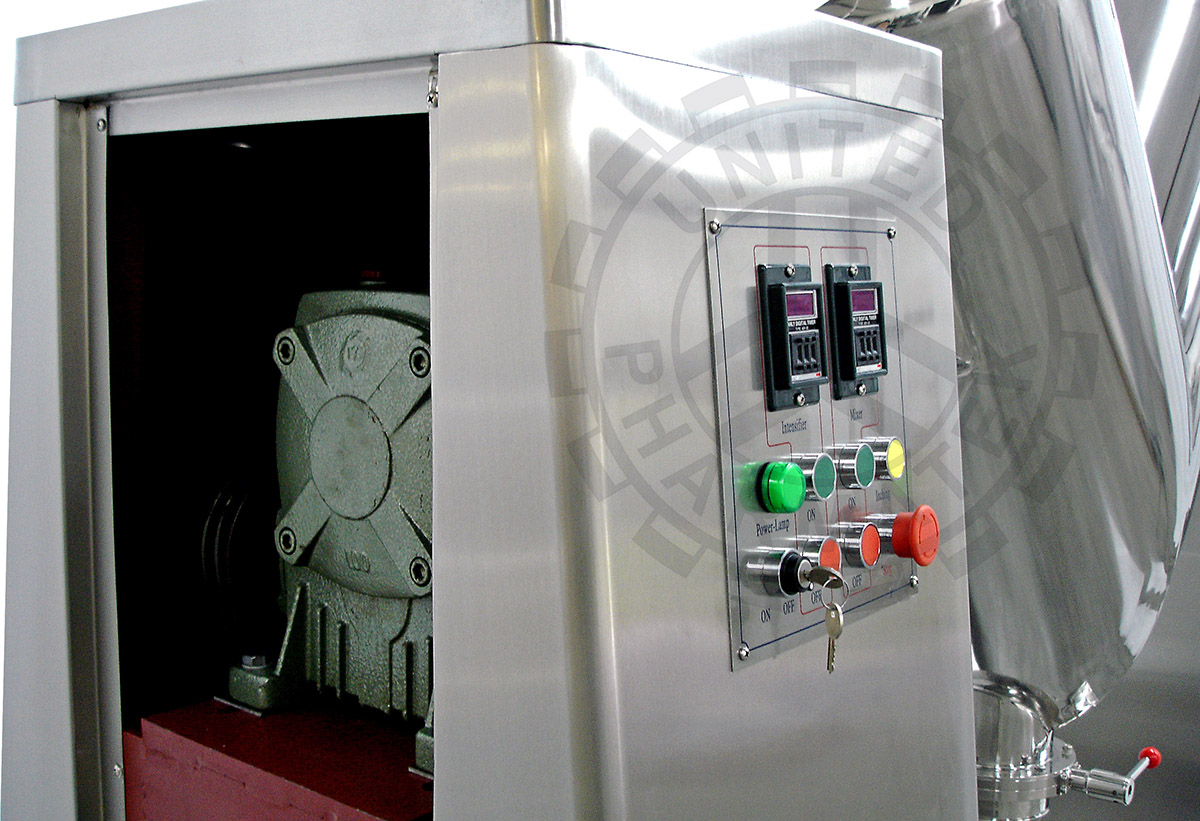

Available Variable Speed Control on V-Shell and I-Bar.

V blender Control Panel

V Blender Working Capacity

V Blender

# Model VB-5 CBF VB-10 CBF VB-18 CBF VB-35 CBF VB-53 CBF VB-70 CBF VB-105 CBF
1 VShell Volume (L) 150 300 500 1000 1500 2000 3000
2 Max. Mixing Volume (L) 80 160 250 500 750 1000 1500
3 Max. Mixing Weight (kg/batch) 45 80 100 250 350 450 750
4 Mixing Rotation (rpm) 16 15 12 12 12 10 8
5 Working Height (mm) 2040 2060 2720 3000 3200 3700 4000
