Automatic Capsule Printer

Automatic Capsule Printer

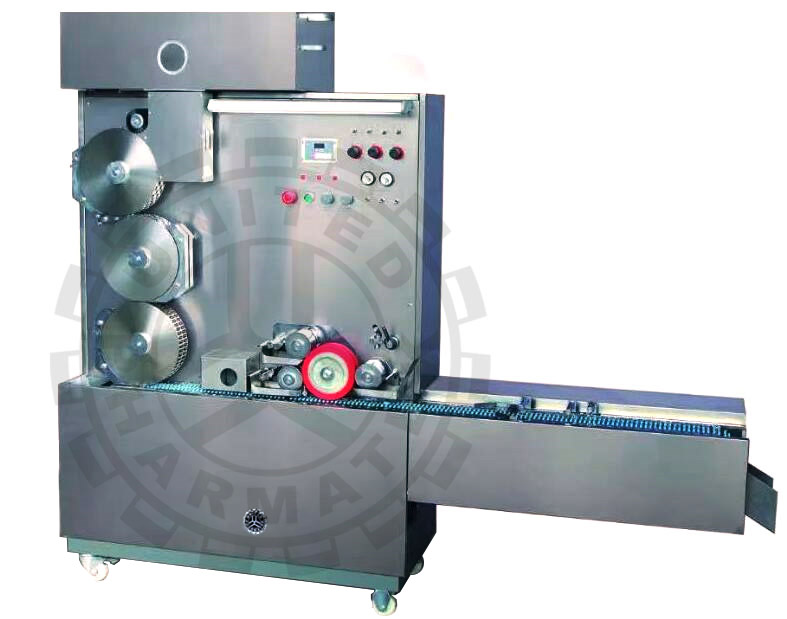

UPD-4 Automatic Capsule Printers

Our Model UPD-4 Automatic Capsule Printer is designed to print capsules, tablets and softgels with low noise, easy adjustments, friendly operating and efficient printing.

It is designed and built for the pharmaceutical and related industries to print products with various sizes and shapes such as round, oval, caplet, oblong, etc.

Machine Specifications

  • It is built to meet the current GMP standard.
  • It is constructed with high quality stainless steel, rugged design and well polished of both interior and exterior of the machine.
  • It incorporates frequency control system that is made by AB Company in USA, which is one of the well known suppliers with high quality performance.
  • The machine also features fool-proof operation, compact size, low-noise, high quality printing and environmental friendly.

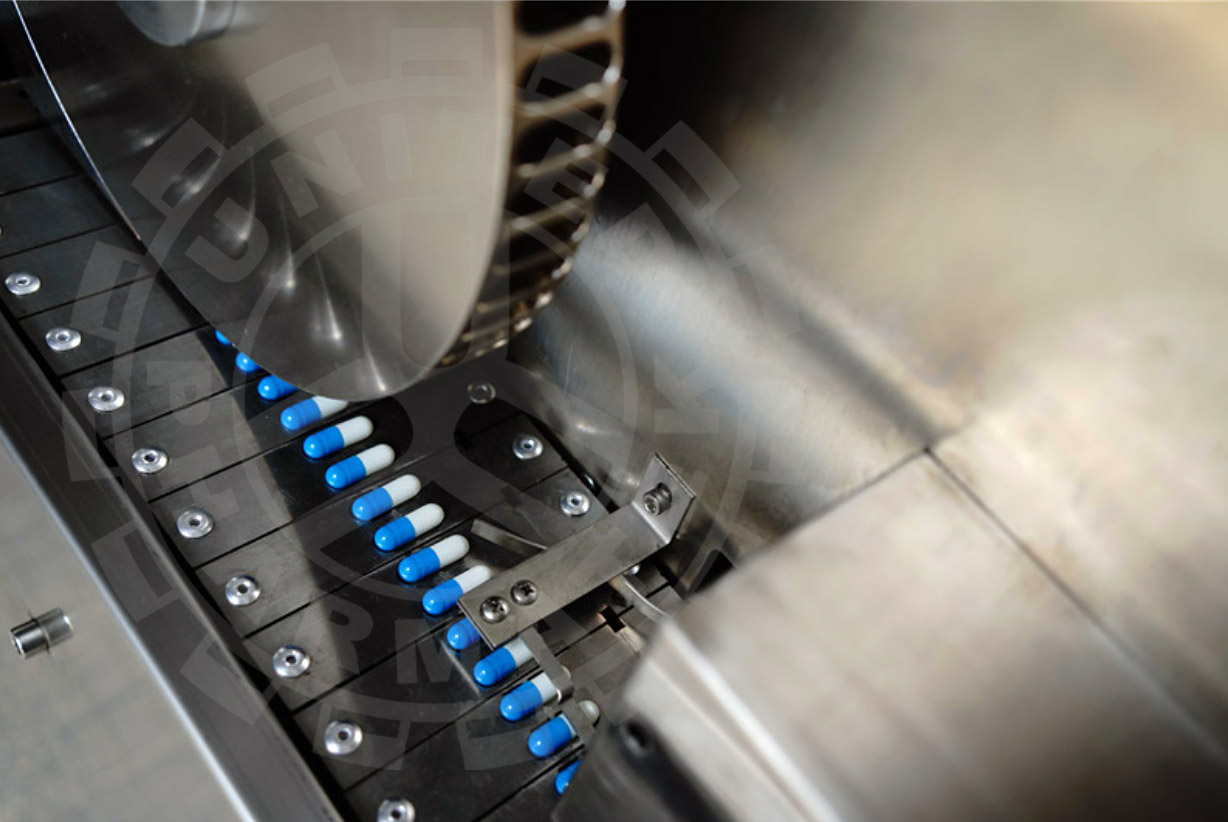

Single Rail Feeder
Specific to the capsule size
Single Rail Feeder

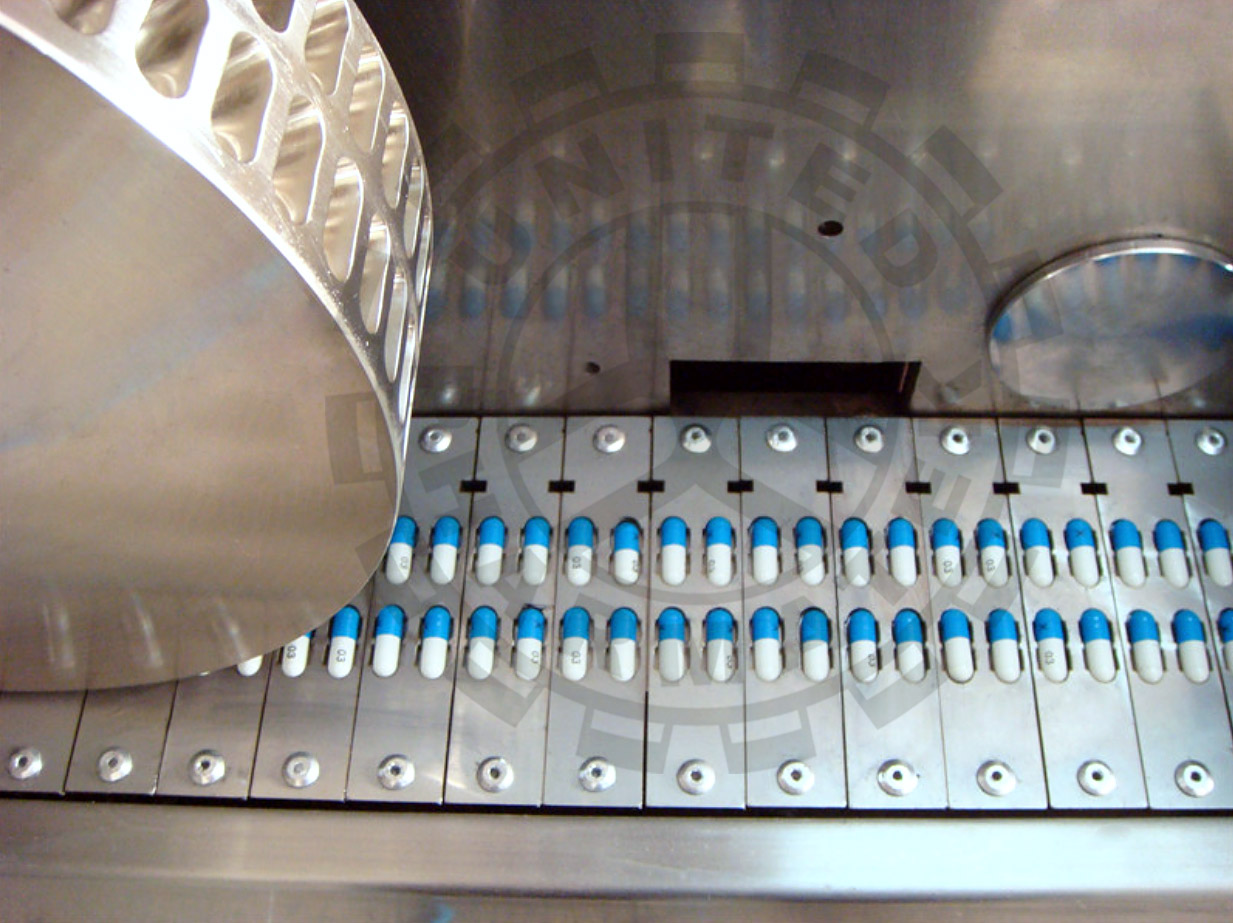

Double Rail
Double Rail Feeder
Specific to the capsule size

Automatic Capsule Printer

Single & Double Rows Capule Printer

# Model UPD-4 UPD-4D
1 Unfilled powder capsules 00# - 5# > 80,000 ~ 90,000 capsules/hour 00# - 5# > 160,000 ~ 180,000 capsules/hour
4 Weight 400kg (880lbs) 500kg (1100lbs)
5 Dimensions 2110mm L x 400mm W x1860mmH 2110mm L x 400mm W x1860mmH
6 Power supply 220V / 10A 220V / 15A
7 Compressed air 40 Mpa 40 Mpa
6 Output 1.7KW 2.5KW
