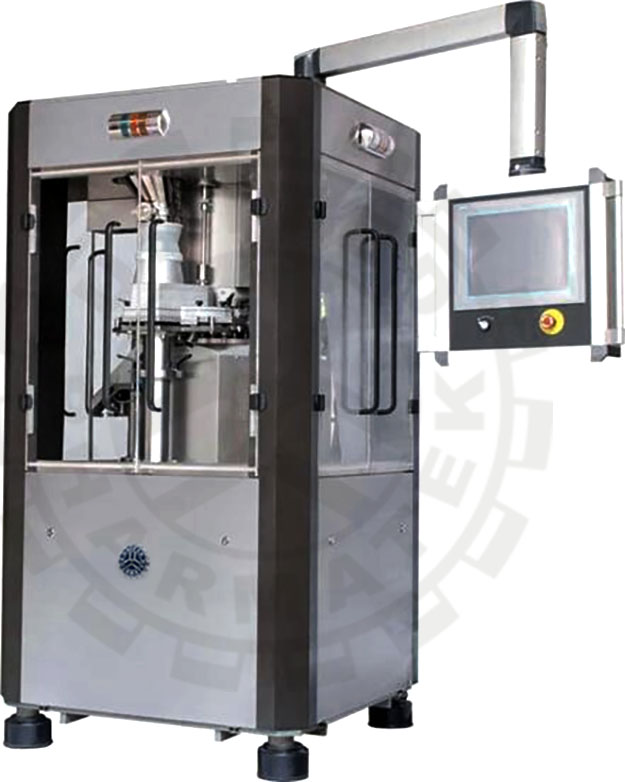

This machine is United Pharmatek's new Single Sided High-Speed Rotary Tablet Press with easily interchangeable turrets and large color touch screen control system and separate electrical control panel.
New technological improvements deliver high quality tablets with
accurate weights, lower waste, and efficient operation for the
pharmaceutical industry. All parts are constructed with high
quality stainless steel to meet the GMP Standard in the
industry. The punches and dies are IPT and EU international
standards. The main mechanical components of the machine have
built-in safety features to protect the punches, dies and
turret.
| # | Model | UTP-2029A | UTP-2036A | UTP-2043A |
|---|---|---|---|---|
| 1 | Capacity | Up to 147,000 tablets per hour | Up to 216,000 tablets per hour | Up to 258,000 tablets per hour |
| 2 | Tooling | "D" TSM/EU1 Keyed Turret | "B" TSM/EU1 Keyed Turret | "BB" TSM/EU1 Keyed Turret |
| 3 | Max Tablet Diameter | (Round: 25mm) / (Shaped: 25mm) | (Round: 18mm) / (Shaped: 18mm) | (Round: 13mm) / (Shaped: 13mm) |
| 4 | Max Turret Speed | 84 rpm | 100 rpm | 100 rpm |
| 5 | Max Depth of Fill | 18 mm | 18 mm | 18 mm |
| 6 | Max Tablet Thickness | 8 mm | 8 mm | 8 mm |
| 7 | Max Compression Force | 100kn | ||
| 8 | Max Pre-Compression | 100kn | ||
| 9 | Machine Dimensions | 970 x 1225 x 2010 mm | 970 x 1225 x 2010 mm | 970 x 1225 x 2010 mm |
| 9 | Electrical Cabinet Dimensions | 800 X 400 X 1820mm | 800 X 400 X 1820mm | 800 X 400 X 1820mm |
| 6 |
Machine Weight Main Machine, Cabinet, Turret Trolley |
3800 + 370 + 580 KG | ||
| 7 | Power Supply |
460V, 60Hz, 5 Wires, 3-Ph 11kW (15kVA) |
||
