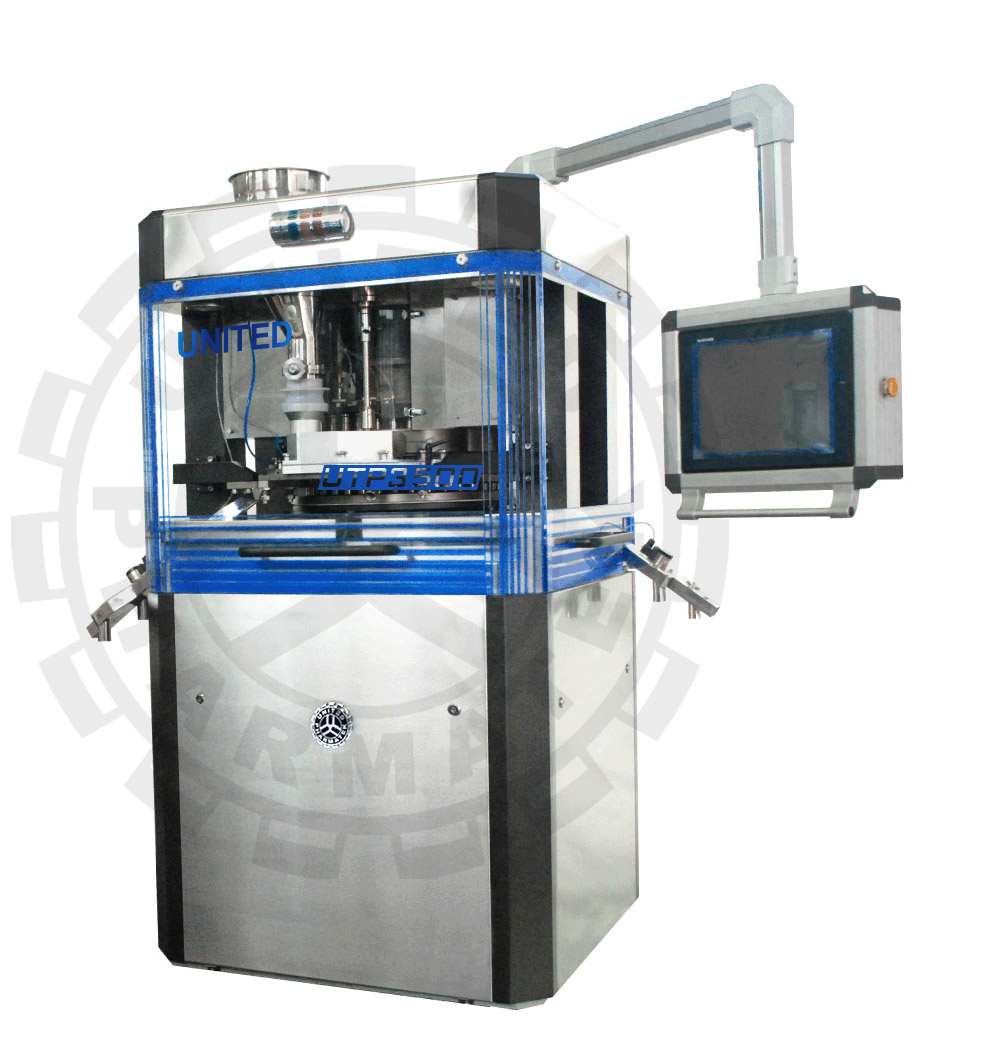

This machine is United Pharmatek's new Double-Sided High-Speed rotary tablet press with large color touch screen control system and separate electrical control panel.

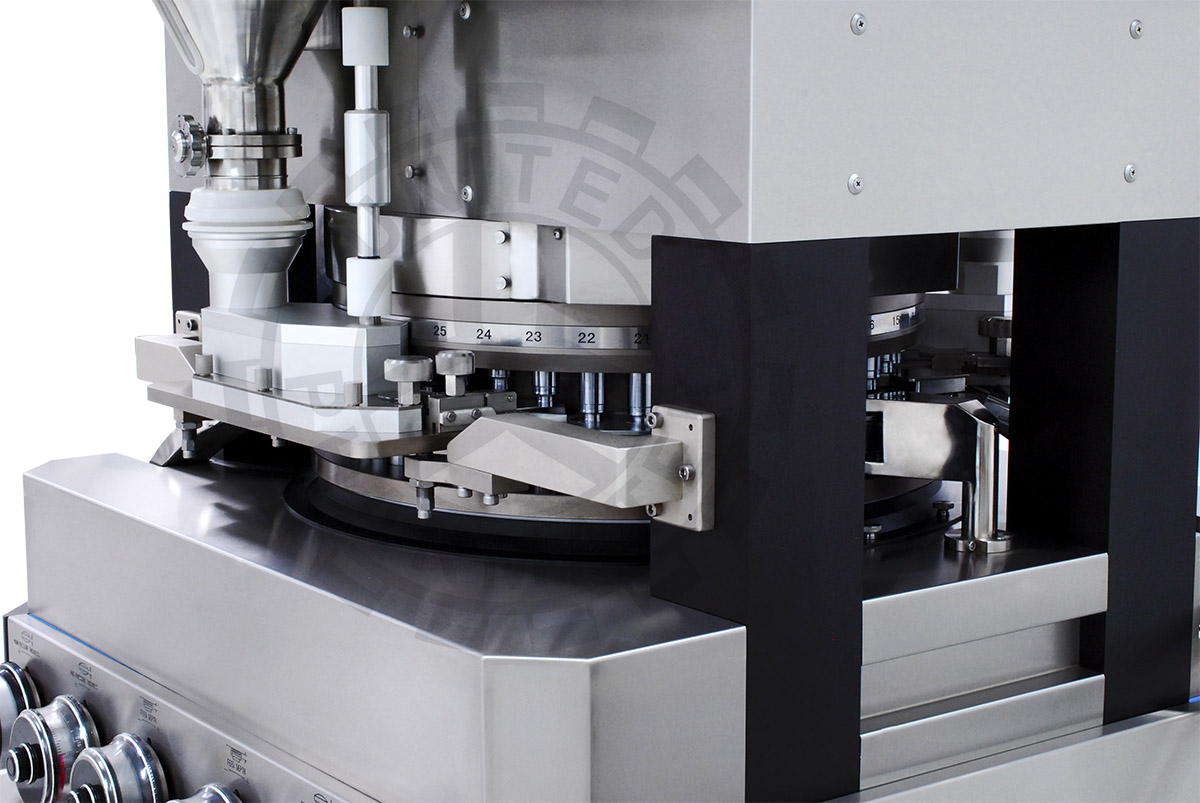

The pressing chamber is completely separated from the gear drive
system. The parts in contact with the tablets are made of
stainless steel, or the surface of those parts are polished and
sterilized. The chamber is also sealed with organic glass for a
better working environment. The gear system, the trace and the
major friction parts are fully lubricated by the continual and
concentrated lubrication devices.
| # | Model | UTP-3537 | UTP-3545 | UTP-3555 |
|---|---|---|---|---|
| 1 | Capacity | Up to 341,880 tablets per hour | Up to 415,800 tablets per hour | Up to 528,000 tablets per hour |

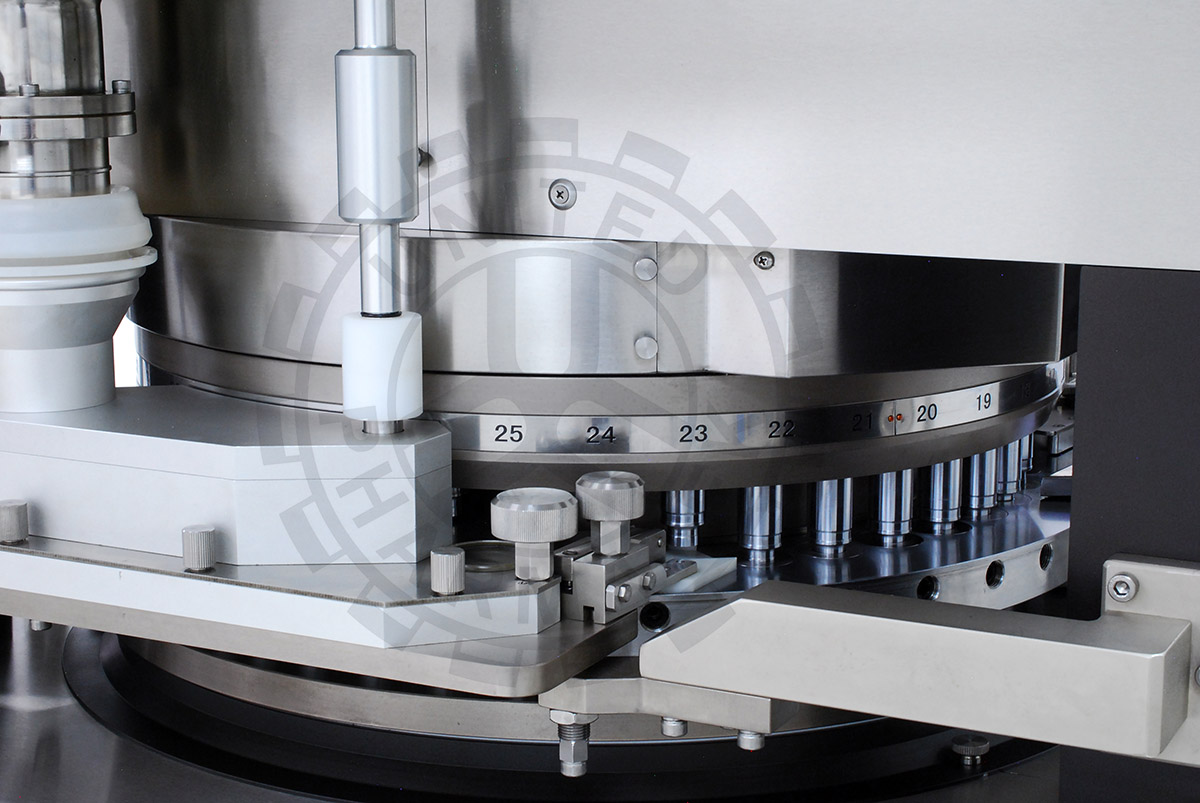

| 2 | Tooling | "D" TSM/EU1 Keyed Turret | "B" TSM/EU1 Keyed Turret | "BB" TSM/EU1 Keyed Turret |
| 3 | Max Tablet Diameter | (Round: 25mm) / (Shaped: 25mm) | (Round: 16mm) / (Shaped: 19mm) | (Round: 13mm) / (Shaped: 16mm) |
| 4 | Max Turret Speed | 77 rpm | 77 rpm | 80 rpm |
| 5 | Max Depth of Fill | 18 mm | 18 mm | 18 mm |
| 6 | Max Tablet Thickness | 8 mm | 8 mm | 8 mm |
| 7 | Max Compression Force | 100kn | 100kn | 100kn |
| 8 | Max Pre-Compression | 100kn | 100kn | 100kn |
| 9 | Machine Dimensions |
43 x 43 x 81 in 1,100×1,100×2,050 mm |
43 x 43 x 81 in 1,100×1,100×2,050 mm |
43 x 43 x 81 in 1,100×1,100×2,050 mm |
| 9 | Electrical Cabinet Dimensions |
31 x 16 x 66 in 800 x 400 x 1,700 mm |
31 x 16 x 66 in 800 x 400 x 1,700 mm |
31 x 16 x 66 in 800 x 400 x 1,700 mm |
| 6 | Machine Weight | 3000 KG | 3000 KG | 3000 KG |
| 7 | Power Supply | 460V, 60Hz, 5 Wires, 3-Ph | 460V, 60Hz, 5 Wires, 3-Ph | 460V, 60Hz, 5 Wires, 3-Ph |
