Pillow Pack Packaging

Vertical Form Fill Seal Machines

United Pharmatek's VFFS Pillow Pack Packaging Machines are designed and engineered to produce pouches with outstanding quality and precision for different applications. We offer 2 different machines for filling either powder or granules. They are capable of forming, filling, and sealing laminated, metalized or polyethylene materials into pouches. They are all made with a 304 stainless steel frame for a cleaner design and easier maintenance.

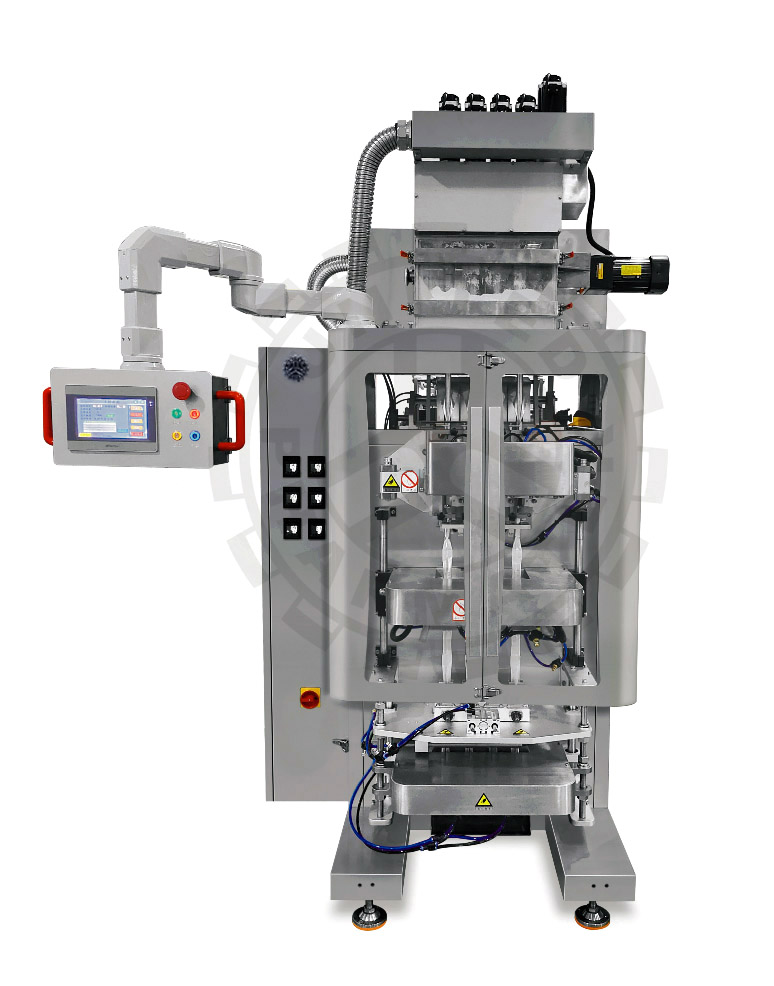

The UXL-220G is a Vertical Form Fill and Seal (VFFS) packaging machine designed to package Granular products. This fully automatic vertical packaging machine uses volumetric filling cups to accurately fill the packs.

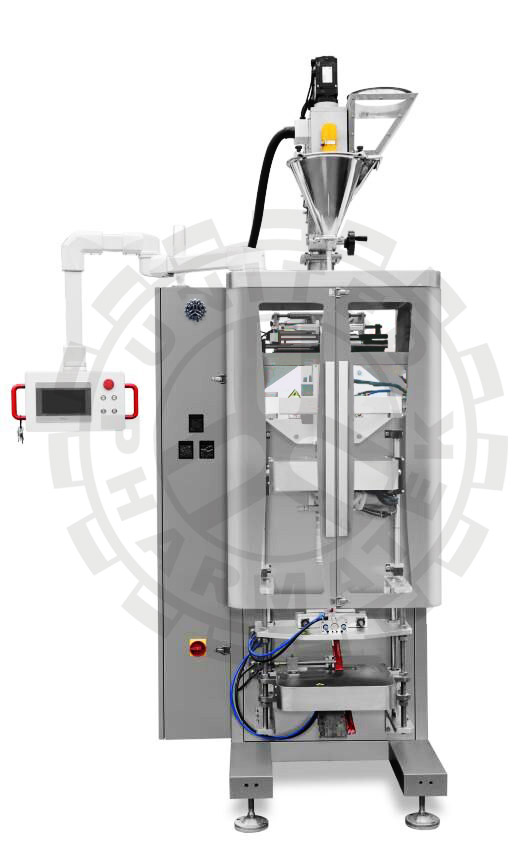

The UXL-220P is a Vertical Form Fill and Seal (VFFS) packaging machine designed to package powders. This fully automatic vertical packaging machine uses an auger filling system to fill powders into a pillow pack pouches / bags.


  • Automatic bag making, measuring, filling, sealing, cutting, counting and standard lot number stamping (Pillow Pack Application)
  • 01 set of mold for choice of filling range included (factory installed)
  • Photo Register Feature Included -- no error of compensation or cumulative error. It will identify the pattern and cut immediately to prevent any single wastage of material.
  • Easy tearing cut feature is included
  • Electronic temperature control systems for sealing in vertical and horizontal directions.
  • The length of the bag can be adjusted using digital control system (Step Motor).
  • Safety Plex Cover Guard Included
  • Custom Up to 2-Files/cut.

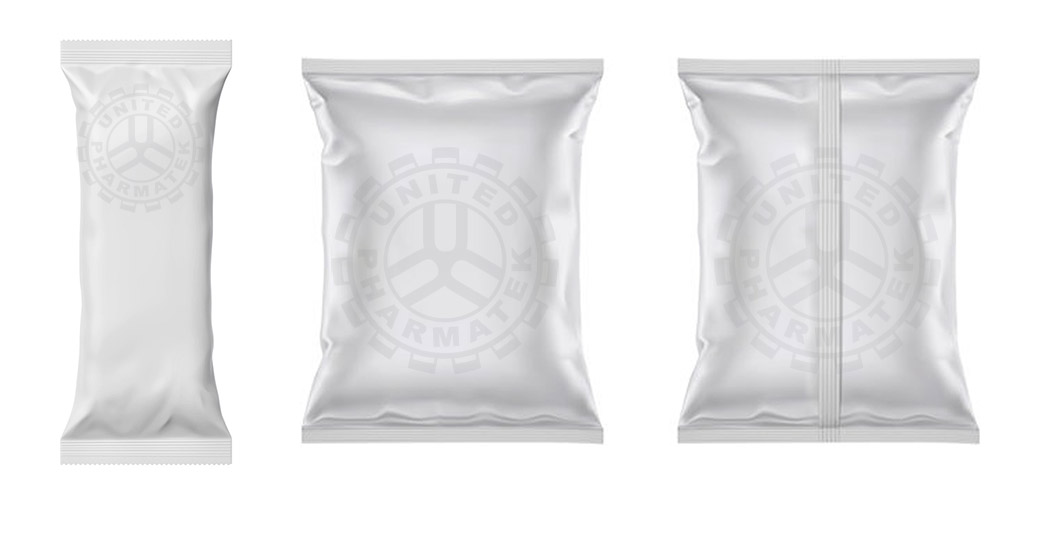

 Pillow Pack Samples

Vertical Form Fill Seal Machine (VFFS)

Pillow Pack Packaging Machines

# Model UXL-220G UXL-220P UXL-220L UXL-220T
1 Application Granular Powder Liquid/Paste Pills/Tablets
2 Packing Speed 20-40 cuts/min
20-40 Sachets/min (Single Lane)
40-80 Sachets/min (Double Lane)
(Capacity dependent on the filling volume and bag length)
3 Max Film Width 220mm
4 Bag Size Length: 40~80mm / Width: 17~55mm
5 Filling Range 1-40ml (40gr.)
6 Filling Qualification Rate 98%
7 Packing Material Size Core of Film Roll: ID: 76mm
Rill Roll Dia: ≤450mm
8 Machine Dimensions 1450x1028x2750mm
7 Machine Weight 600kg
