Square Cone Shell Blender

Blending Equipment

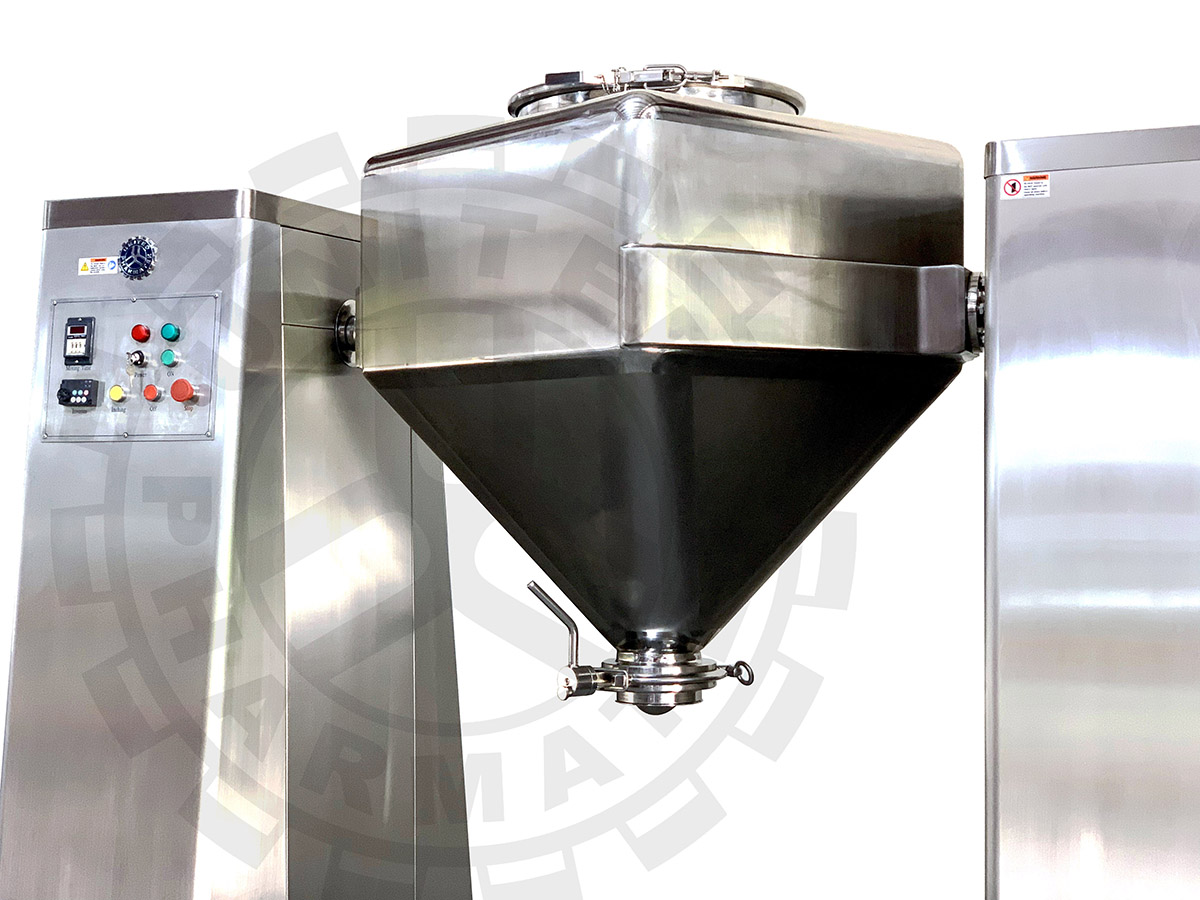

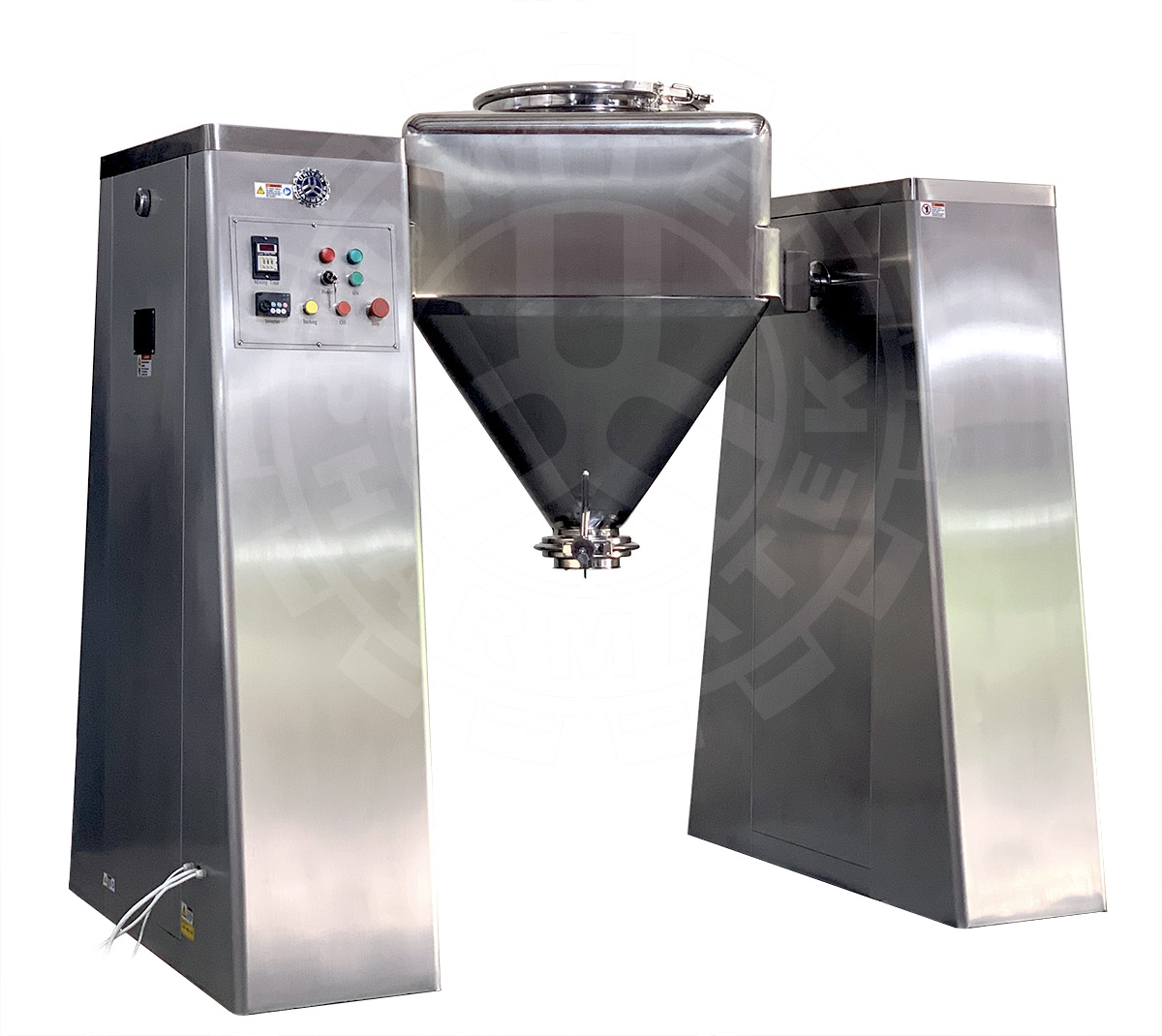

Automatic Square Cone Blender

United Pharmatek's Square Cone Blender is designed for ultra-uniform mixing of a wide range of products in the pharmaceutical, chemical, metallurgical, food, light and related industries. This type of blender has a three dimensional mixing method for high efficiency mixing unlike other 2-dimensional mixers.

The whole machine features novel design, compact structure, and good appearance; The evenness of mixing reaches 99%, and the volume charge coefficient reaches 80%, compared to 40%-50% of other blenders.

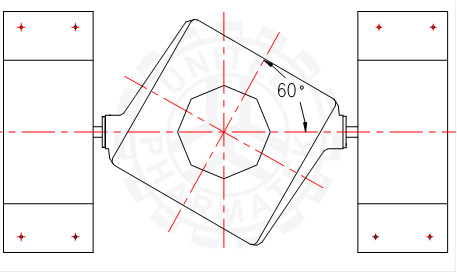

Pharmaceutical Mixing Working Principle

Materials are charged into a closed square-cone mixing vessel, the symmetrical axis of the vessel and the rotating shaft form an angle, and the materials inside the square cone blender are strenuously rolled over, producing high shear to achieve the best mixing effect through the 3-dimensional rotation.

Pharmaceutical Mixing Working Principle

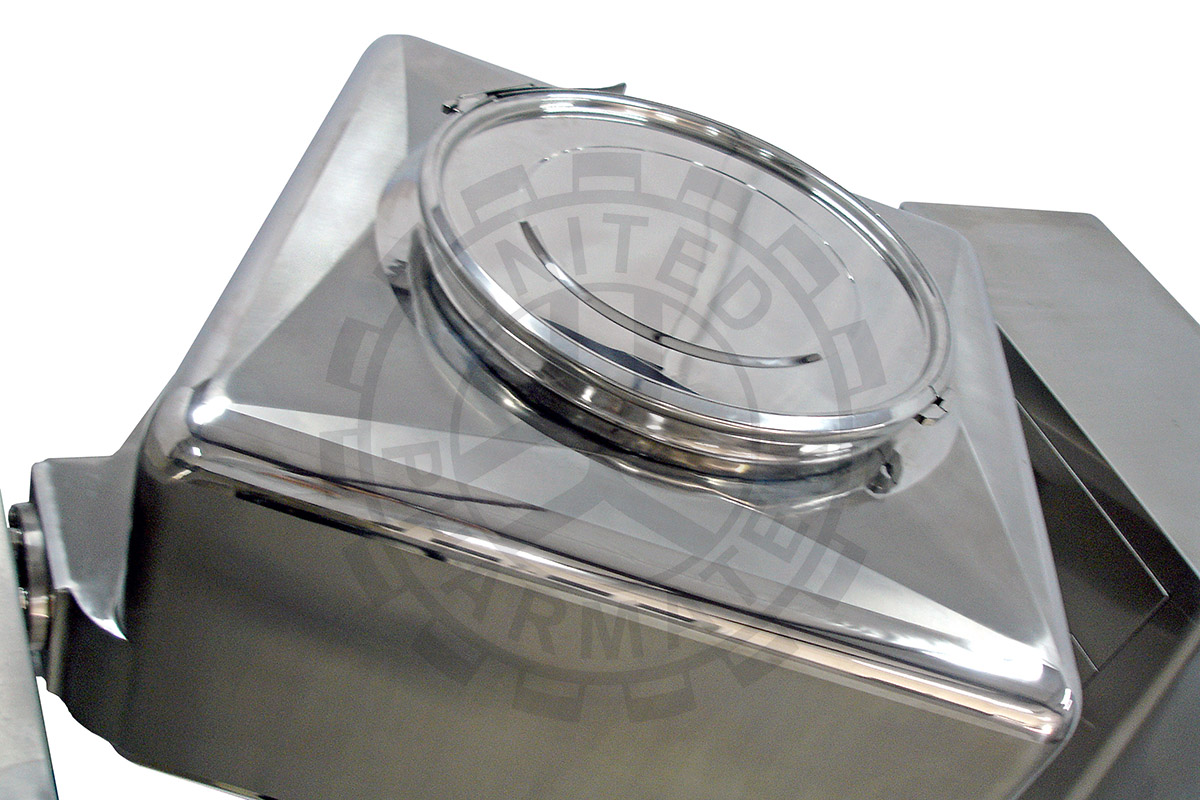

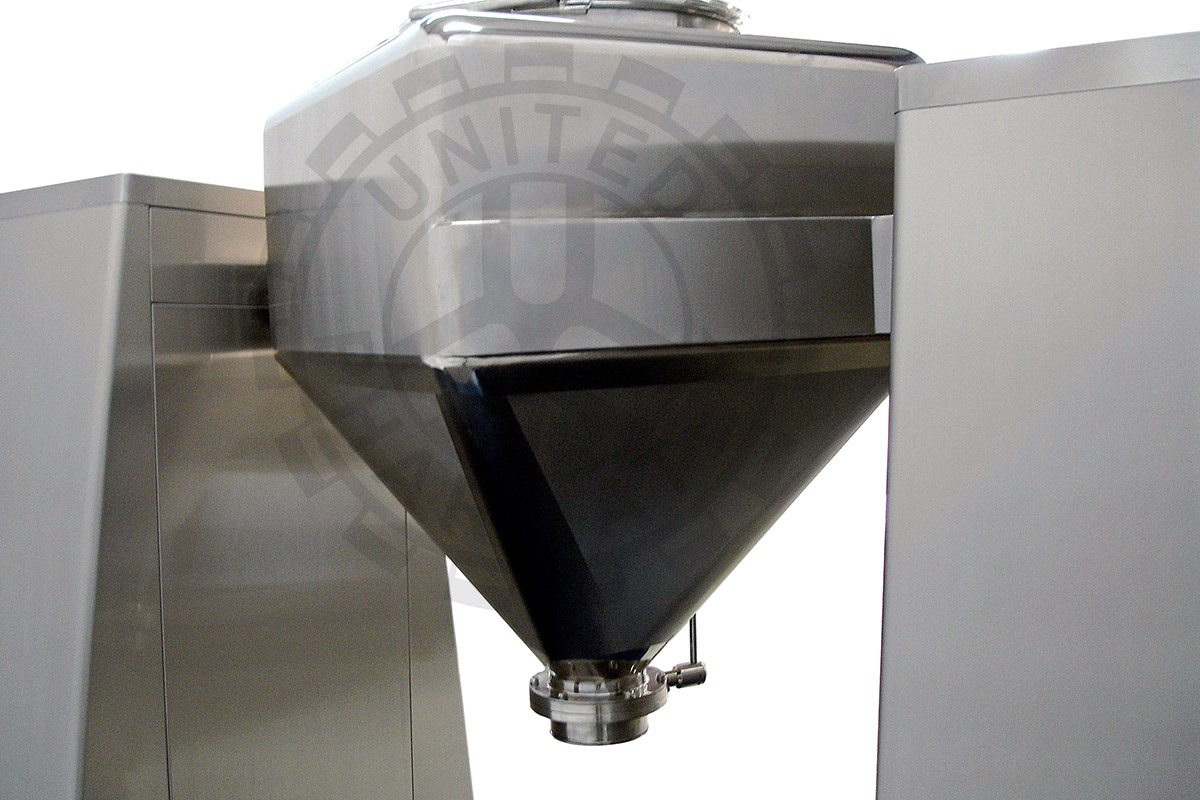

Highly polished inner and outer surfaces of the Cone Shell
No hidden corner, Easy to discharge materials.
United Pharmatek Square Cone Blenders
Single Side Square Cone Powder Blender
Variable Speed Control for vessel as standard
Inch function for setting the stop position of the Cone Mixing Shell
Three dimensional mixing method
High efficiency mixing unlike other 2-dimensional mixers
United Pharmatek Conical Blender

Automatic Square Cone Blenders

UCM Powder Conical Mixers

# Model UCM-400 UCM-800 UCM-1000 UCM-1500 UCM-2000 UCM-3000
1 Overall Capacity (L) 400 800 1000 1500 2000 3000
2 Max. Loading Capacity Volume (L) 320 640 800 1200 1600 2400
3 Max. Mixing Weight (kg/batch) 200 400 500 750 1000 1500
4 Mixing Rotation (rpm) 14 12 12 10 8 6
5 Working Height (mm) 2175 2400 2560 2700 3000 3300
