Single Station Tablet Press

Single Station Tablet Press

Single Punch Tablet Press

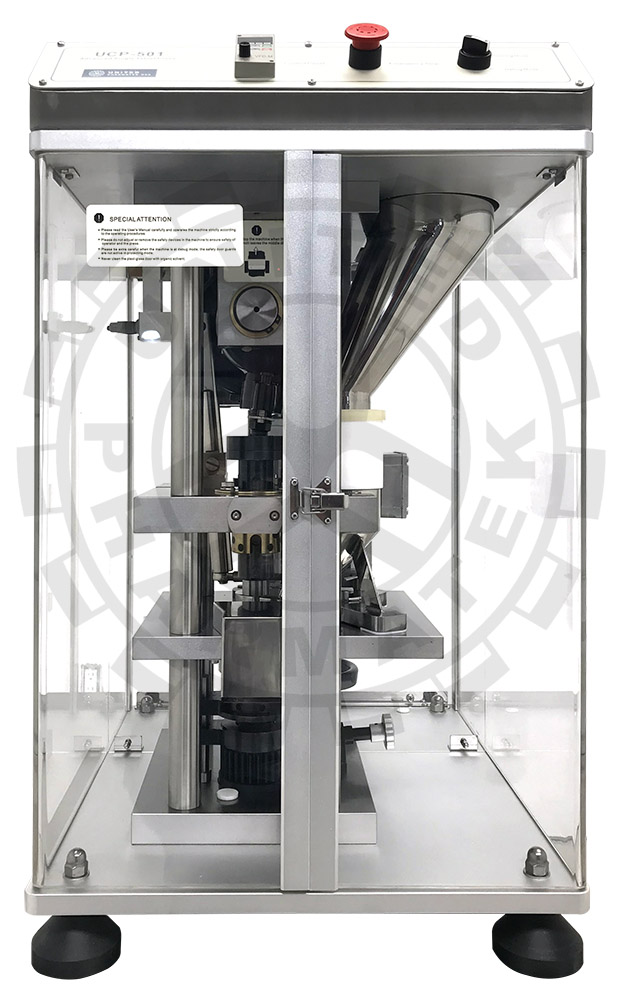

Model UCP-501 Advanced Single Station Tablet Press is ideal for pressing all sizes and shapes of tablets up to 25mm. This is a premier desktop single punch tablet press designed and built to meet the strict demand by pharmaceutical R & D and similar research laboratories. It has a 5-ton compaction force and is able to press O-ring tablets. It is also great for chemical, herbal, food, confection, nutraceutical, and other related industries. It is a mini heavy-duty bench top with the fastest production capacity in its class. It has one 8mm round punch and die set installed on the machine. Additionally, changing punches and dies has never been easier.

Machine Specifications

  • The minimum consumption of lab material is just 200g.
  • Pharmaceutical Grade—cGMP Standard.
  • One inch thick solid S.S. Die Table.
  • New Upper Punch Safety Feature.
  • All contact parts are highly polished S.S.
  • H4-Side Plexi-glass with Safety Interlocks.
  • Excellent for pressing O-Ring Tablets.
  • 5-Ton Compaction Force.
  • Variable Speed Control.
  • Available in single, double or triple punch heads.
  • Rugged & compact designed.
  • Best price and quality in its class.
  • All high quality stainless steel construction.
  • One-year industry standard warranty.
  • Affordable custom designed punches & dies.
  • Produces all sizes & shapes of tablets up to 25mm.

Single Punch Tablet Press

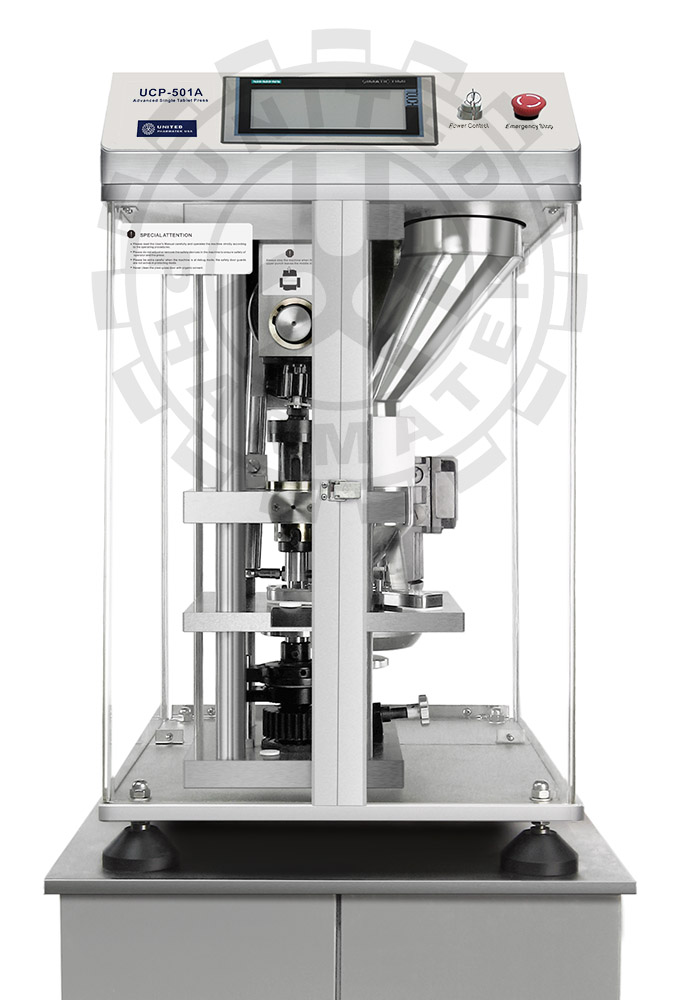

UCP-501A w/Touch Screen

Displays Main Compression Force Value
Production Data printing feature included
Heavy-duty frame construction
360 degree panorama for easy observing and clean
High Speed Capsule Filling Magazine
High Speed Capsule Filler Dosing

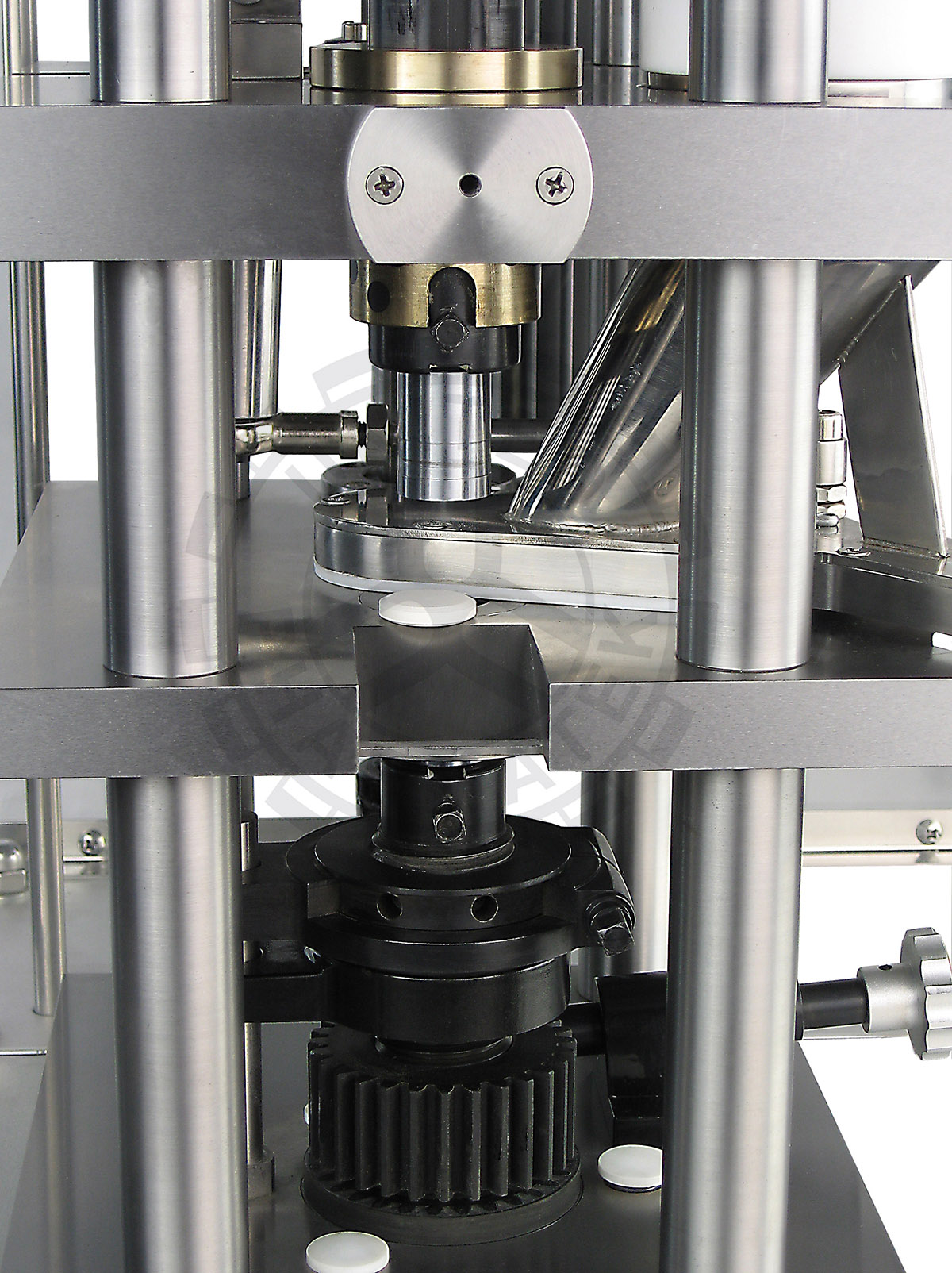

Cam Driven Single Station Tablet Press
Main Compression (50 kN)
Max Tablet Diameter 25mm)
(Round)
/ Max Tablet Thickness 8 mm
High Speed Capsule Filler Dosing

UCP-501 Advanced Single Punch Tablet Press

Single Station Tablet Press

# Model UCP-501 UCP-801
1 Number of Punch Heads 1 / 2 / 3
2 Output, Tablets/hr. Up to 3,600 tablets per hour (1-Punch Head)
Up to 7,200 tablets per hour(2-Punch heads)
Up to 10,800 tablets per hour(3-Punch Heads)
3 Max Tablet Diameter Round: 25mm
(1-Head)		 Round: 35mm
(1-Head)
4 Max Depth of Fill 18 mm 22 mm
5 Max Tablet Thickness 8 mm 10 mm
6 Max Compression Force 50kn 80kn
7 Machine Dimensions 23 x 20 x 33 in / 580 x 500 x 830 mm
8 Machine Weight 150 KG
9 Power Supply AC/220V/60Hz/1Ph
